2-channel 210MSPS PMC digitizer


The AD490 is a high performance PMC digitizer module dedicated to digital signal processing applications with high bandwidth and complex algorithms requirements. In addition to two 210MSPS A/D channels, the AD490 offers fast on-board memory resources and two Virtex-4 FPGAs. Up to 4x 2.5Gbps optical tranceivers for serial FPDP or gigabit Ethernet applications are available for communication with external systems (eg, storage system).

Click for ordering information.

Click to enlarge
AD490 on a PCI-X adapter

User Manual (pdf)

Programmers Guide (pdf)

Product Brief (pdf)


Two ADC channels, 40MHz to 210MHz sampling range
12-bit data resolution
Custom Clock and Trigger inputs via external connectors
On board clock generation in steps of 0.5MHz

High speed DSP processing in two Xilinx Virtex-4 ® FPGA
XC4VSX55, XC4VLX40, XC4VLX60, XC4VLX80, XC4VLX100 or XC4VLX160
XC4VFX20 or XC4VFX60 with embedded PowerPC RISC processor
FPGA configuration on-board storage
Off-the-shelf IP cores
FPGA firmware design services available upon request

2 x 32M x 16 DDR2 SDRAM (128MB)
4 x 2M x 32 QDR2 SRAM devices (32MB)
128Mbit flash device

PCI interface
PCI-X 64-bit 133MHz, 3.3V
PCI-X/PCI 64/32-bit 66MHz, 3.3V
PCI 64/32-bit 33MHz, 3.3V
PMC Pn4 64 I/O connected to FPGA A

Measured sustained bandwidth
64-bit 133MHz = 760Mbytes/s
64-bit 66MHz = 450Mbytes/s
32-bit 33MHz = 120Mbytes/s

 Front Panel high speed communication
4x 2.5Gbps optical transceivers for sFPDP, Fibre Channel, Gigabit Ethernet and Infiniband applications. Useful for connecting to a remote server or a storage system such as Hybrid DSP DHSDR-A.

Software Support
FPGA reference design
API, documentation and sample source code
Software utility to program on-board Flash with FPGA configuration data
Device driver for Windows 2000/XP, Linux
Test /demonstration application
Custom FPGA firmware /application /driver development available upon request

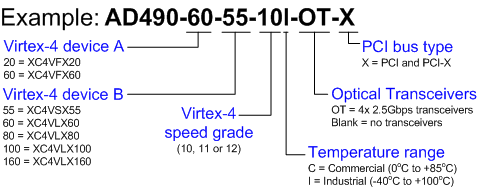

Ordering Info
