VID471-472: Camera Link frame grabber
with large processing resources
BuiltWithNOF

Description

The VID471 is a high performance PMC full camera link frame grabber. with two mini CL connectors. It offers fast on-board memory resources and two Virtex-4 FPGAs for real time video processing.

The VID472 is a high performance PMC camera link frame grabber with two mini CL connectors in order to connect 2 independant cameras. It offers fast on-board memory resources and two Virtex-4 FPGAs for real time video processing. This product can also be used in PCI and PCI-express desktop PCs with a PCI to PMC or PCI-express to XMC adapter

Click for ordering information.

VID471 - Click to enlarge
Click to enlarge
VID472 - Click to enlarge
Click to enlarge

Features

Camera link frame grabber
VID471: Base/Medium/Full configuration via two mini CL connectors
VID472: Two Base configurations via two mini CL connectors

FPGA
High speed DSP processing in two Xilinx Virtex-4 ® FPGA
XC4VSX55, XC4VLX40, XC4VLX60, XC4VLX80, XC4VLX100 or XC4VLX160
XC4VFX20 or XC4VFX60 with embedded PowerPC RISC processor
FPGA configuration on-board storage
Off-the-shelf IP cores
FPGA firmware design services available upon request

Memory
2 x 32M x 16 DDR2 SDRAM (128MB)
4 x 2M x 32 QDR2 SRAM devices (32MB)
128Mbit flash device

PCI interface
PCI-X 64-bit 133MHz, 3.3V
PCI-X/PCI 64/32-bit 66MHz, 3.3V
PCI 64/32-bit 33MHz, 3.3V
PMC Pn4 64 I/O connected to FPGA A

Measured sustained bandwidth
64-bit 133MHz = 760Mbytes/s
64-bit 66MHz = 450Mbytes/s
32-bit 33MHz = 120Mbytes/s

Software Support
FPGA reference design
API, documentation and sample source code
Software utility to program on-board Flash with FPGA configuration data
Device driver for Windows 2000/XP, Linux
Test /demonstration application
Custom FPGA firmware /application /driver development available upon request


Ordering Info

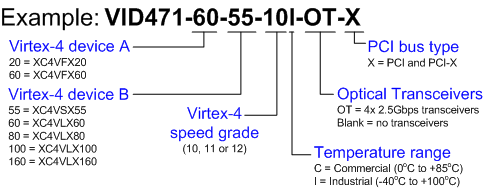

part_number_VID471_2

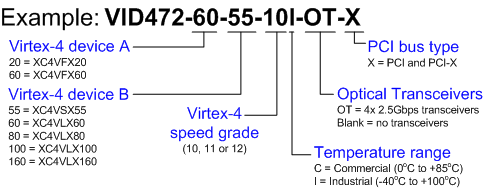

part_number_VID472_2
