Hybrid DSP is a Netherlands based specialist in rugged FPGA-based processing and data acquisition boards for demanding defence, aerospace, and high-end industrial programs.

Services

What We Do

As domain specialist, we assist our clients in the specification, design, production, integration, technical support and long term product management of high-end Commercial Off The Shelf (COTS) and semi-custom Modified-COTS (M-COTS) FPGA boards aligned with VPX and the SOSATM Technical Standard.

Multi-way Partnership

We discretely support our clients and their customers, suppliers and partners, acting as consultants from pre-sales to long-term end of life logistics.

Proven Design

Characterized designs backed with comprehensive understanding of how the product will behave within a given system and environment.

Program Optimized

When it comes to RF and FPGA based processing, COTS is a lesson in compromise. Hybrid DSP's Modified-COTS optimized core designs permit a rapid, low-risk route to a customized solution that retains the TCO benefits of COTS.

Security of Supply

Fully European based design, manufacture and support including PCB, assembly and heatframe production. Our VITA 46.11 IPMI implementation and other core IP is developed in-house, is source available and licenseable.

Reduce Life-cycle TCO

Successful real world programs prioritize long term availability, careful component selection, predictability, MTBF, MTTR and total cost of ownership.

Accelerate Development

Preliminary studies and de-risking exercises using existing similar platforms ensure our clients' engineers are actively involved throughout the development cycle of a Modified-COTS product.

Products

Rugged FPGA Processing

High-end FPGA's provide a unique flexibility and power however this is also what makes their specification and integration so complex. Do it right and it becomes more than just an efficient processor, it serves as the glue logic that enables disparate components and legacy interfaces to interoperate as required.

Download a single PDF containing all datasheets including the latest Hybrid DSP SOSATM aligned V3UFMC01P7 and a 100% in-house developed bare metal portable licensable VITA 46.11-2022 Tier-3 IPMC for use in 3rd party designs, customization or security review.

VITA 46.11 Solutions

VITA 46.11 is a comprehensive standard (~300 pages) and leverages the even more comprehensive IPMI specification (>400 pages). The SOSATM Technical Standard requires vendors to support VITA 46.11-2022 Tier-3 implementations. Additionally, risk management initiatives such as “Software Bill of Materials-based supply chain” and “deliver uncompromised” are forcing manufacturers to invest in compliant IPMC software implementations.

Hybrid DSP has a broad experience in developing, debugging and maintaining VITA 46.11 compliant products. Board vendors and system integrators face similar challenges when it comes to compliance verification and debugging. On top of our in-house developed Tier-3 IPMC implementation, we recently launched two new products to support manufacturers with debugging and compliance testing. The VITA 46.11 Mock Chassis Manager is an Ethernet-to-IPMB converter that assists engineers while debugging IPMC implementations. The VITA 46.11 Compliance Verification Test software supports vendors and system integrators with consistent verification testing of their products against the extensive list of Commands and Rules specified in VITA 46.11-2022.

Semi-custom M-COTS VPX SOSA FPGA
Company and Solutions Overview

Embedded Sensor Processing

Focussed on 3U and 6U VPX and SOSATM

Hybrid DSP Systems was founded in the Netherlands in 2018 to provide leading system integrators and board OEMs with an efficient, secure and scalable service for ITAR-free semi-custom (RF) I/O and FPGA based boards that retains the advantages of COTS. Simplify compliance, compatibility, time-to-market, production, test and product lifecycle management of application specific boards. Download datasheet

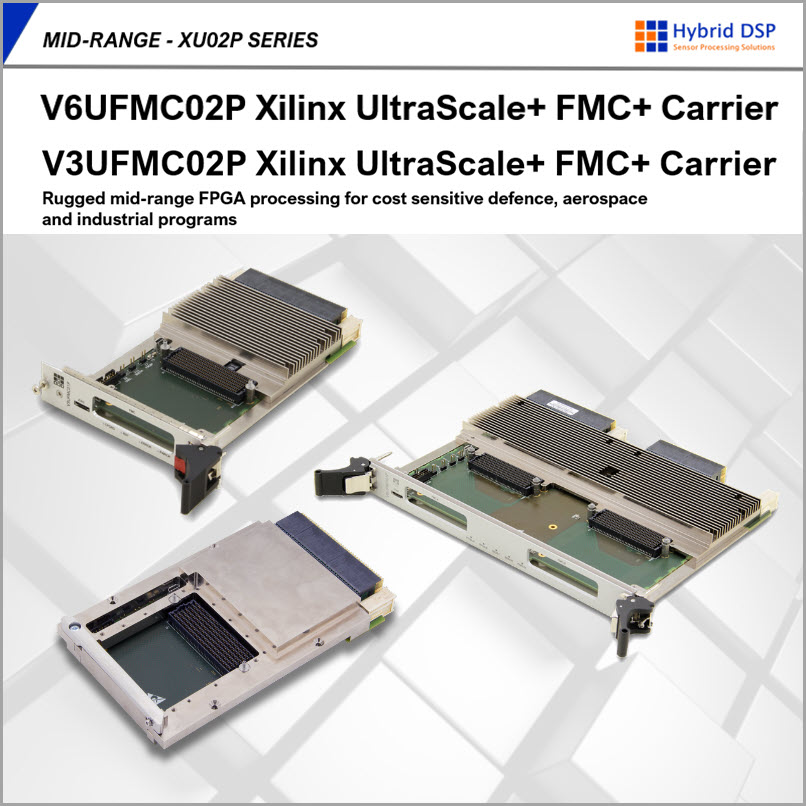

V6UFMC02P
MID-RANGE - XU02P SERIES

3U and 6U VPX Kintex UltraScale+

Rugged mid-range FPGA processing for cost sensitive defence, aerospace and industrial programs

Derived from the UltraScale XU01P Series, the Kintex UltraScale+ powered 3U V3UFMC02P and 6U V6UFMC02P are members of Hybrid DSP’s XU02P 1156 Core Series of mid-range, cost effective, rugged processing boards based on the Xilinx Kintex UltraScale+ A1156 FPGA package, up to 8GB DDR4 and an ARM-based Board Management Controller (BMC). Download datasheet

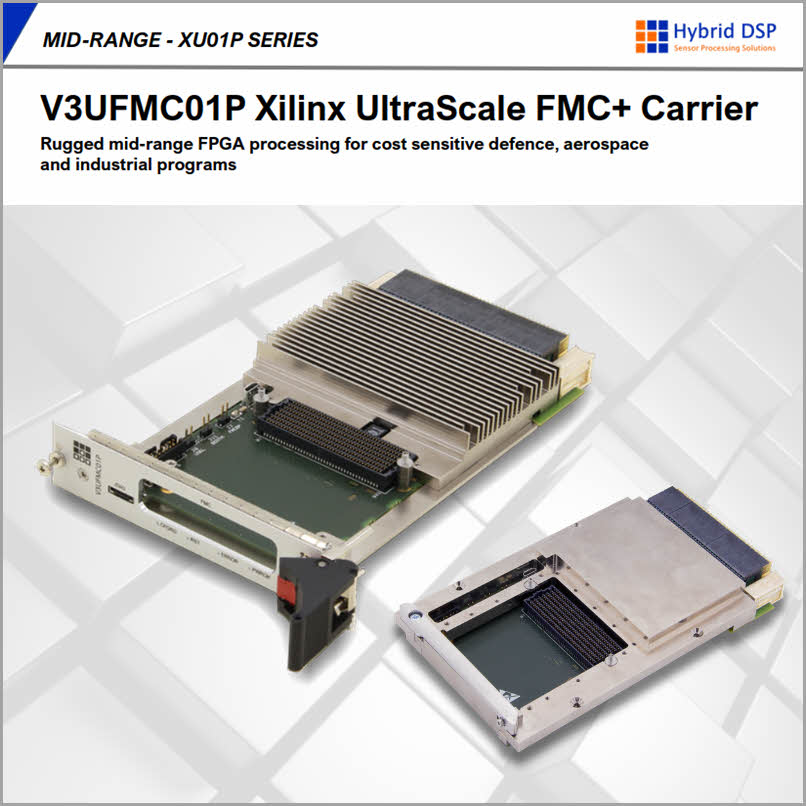

V3UFMC01P
Mid-range XU01P Series

3U VPX Kintex UltraScale

Rugged mid-range FPGA processing for cost sensitive defence, aerospace and industrial programs

The 3U VPX V3UFMC01P is a member of Hybrid DSP’s XU01P 1156 Core Series of mid-range, cost effective, rugged processing boards based on the Xilinx Kintex UltraScale A1156 FPGA package, up to 8GB DDR4 and an ARM-based Board Management Controller (BMC). Download datasheet

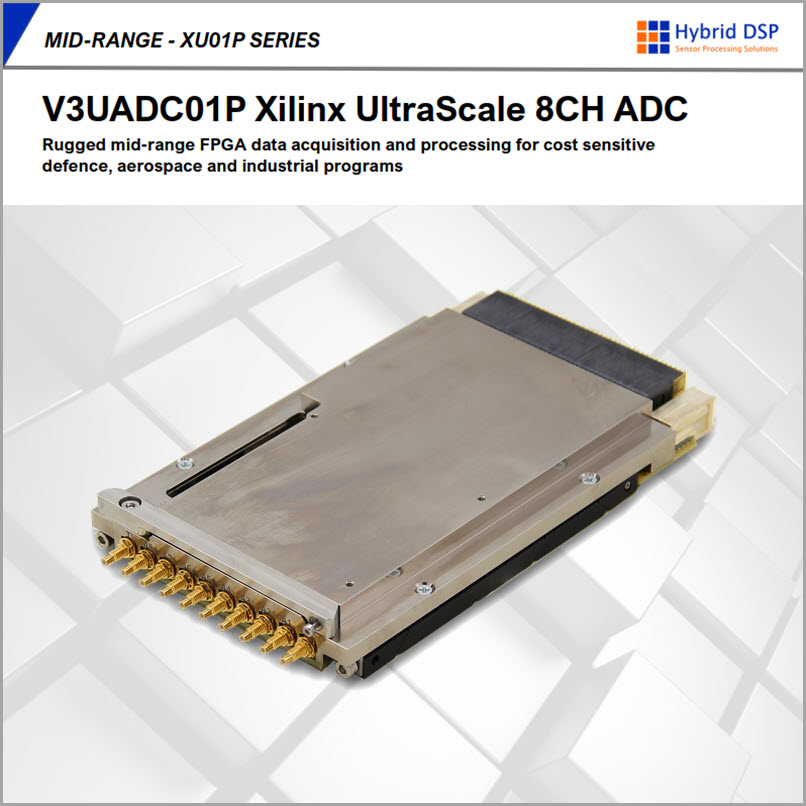

V3UADC01P
Mid-range XU01P Series

3U VPX Kintex UltraScale 8CH ADC

Mid-range XU01P Monolithic ADC FPGA Board

The monolithic V3UADC01P is based on the V3UFMC01P and a customer’s legacy FMC ADC module. Hybrid DSP’s Modified-COTS optimized base XU01P design permitted a low-risk, rapid form-fit-function replacement of the existing modular solution leading to simplification of supply-chain, lifecycle management and serviceability, as well as a significant cost-saving across the program lifetime. Download datasheet

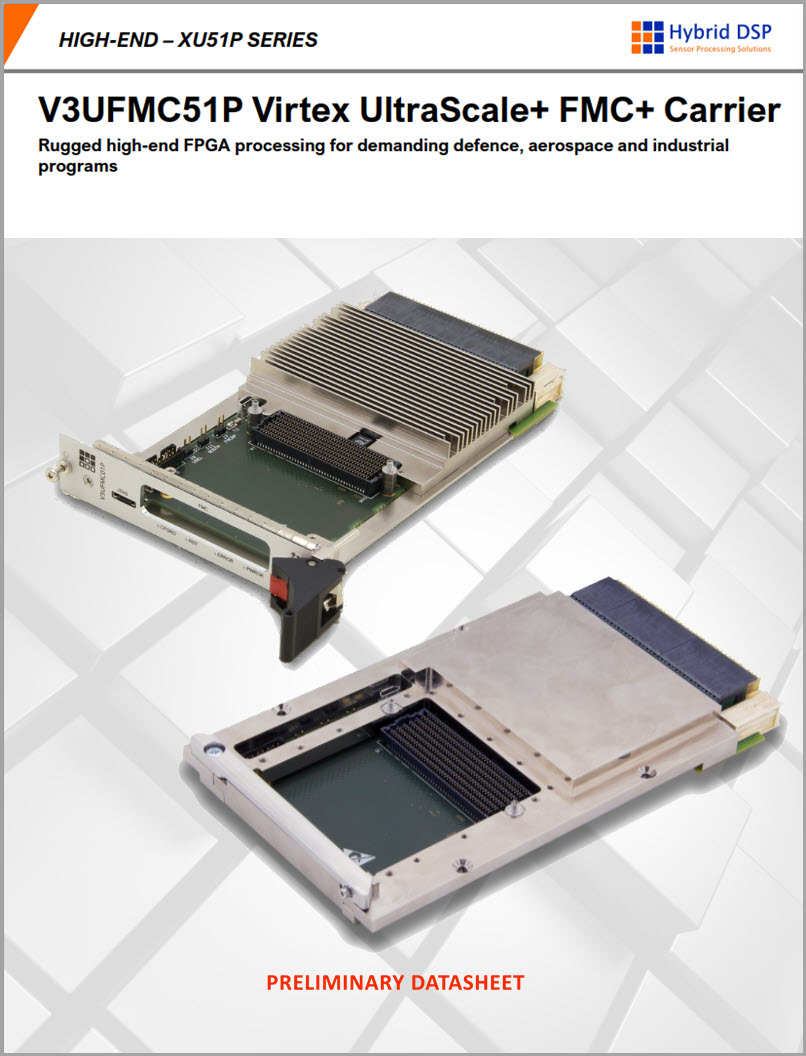

V3UFMC51P
High-end XU51P Series

3U VPX Virtex UltraScale+

Rugged high-end FPGA processing for demanding defence, aerospace and industrial programs

The 3U V3UFMC51P is a member of Hybrid DSP’s XU51P Series of high-end, rugged processing boards based on the Xilinx Virtex UltraScale+ A2104 FPGA package, FMC+ site, up to 16GB DDR4 and an ARM-based Board Management Controller (BMC). The V3UFMC51P is available with a range of build options for VITA 66/67, OpenVPX air and conduction cooled based systems as well as those aligned with the SOSATM Technical Standard. Download datasheet

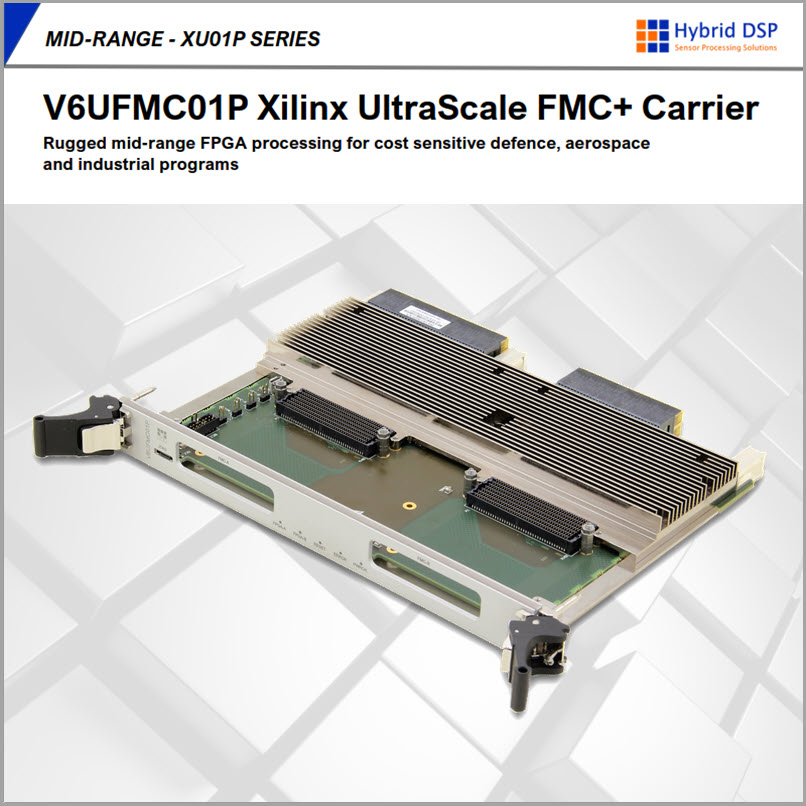

V6UFMC01P M-COTS Derivative
Mid-range XU01P Series

6U VPX Dual Kintex UltraScale

Rugged mid-range FPGA processing for cost sensitive defence, aerospace and industrial programs

The 6U V6UFMC01P is a member of Hybrid DSP’s XU01P 1156 Core Series of mid-range, cost effective, rugged processing boards based on the Xilinx Kintex UltraScale A1156 FPGA package, up to 8GB DDR4 per FPGA and an ARM-based Board Management Controller (BMC). Download datasheet

==================================================

Contact

Get in Touch

Integrating high value, complex electronics is tough. Something will go wrong or be more time consuming than planned, that's a given. The question is how it is handled. At some point the most efficient way forward is going to involve technical teams getting together. Hybrid DSP Systems is located in Leiden in the Netherlands, less than 30 minutes from Amsterdam Schiphol Airport by train or car.
