FM485 PMC-X Virtex-5
FPGA Module with Optical I/O
BuiltWithNOF

Description

The FM485 is a high performance PMC/PMC-X module dedicated to data acquisition, processing and communication applications with complex requirements. Built on the success of the FM48x series, the FM485 offers fast on-board memory resources and two FPGAs (Virtex-4 and Virtex-5). High bandwidth communication throughput is easily achieved via optical transceivers for applications where data acquisition, processing and real time recording cannot suffer the bandwidth throttle associated with conventional processors.

Click for ordering information.

Click to enlarge
Click to enlarge

User Manual (pdf)

Product Brief (pdf)


Features

Conduction cooled -optional

FPGA
 High speed DSP processing in Xilinx Virtex-5 FPGA
 XC5VLX50T, XC5VLX85T, XC5VLX110T, XC5VSX50Tor XC5VSX95T
 Virtex-4 XC4VFX20 or XC4VFX60 with embedded PowerPC processors
 FPGA configuration on-board storage
 Off-the-shelf IP cores
 FPGA firmware design services available upon request

Memory

4 x 128M x 8 DDR2 SDRAM (256MB)
 2 x 2M x 32 QDR2 SRAM devices (16MB)
 512Mbit flash device

PCI interface
PCI-X 64-bit 133MHz, 3.3V
PCI 64/32-bit 66MHz, 3.3V
PCI 64/32-bit 33MHz, 3.3V

Measured sustained bandwidth
64-bit 133MHz = 760Mbytes/s
64-bit 66MHz = 450Mbytes/s
32-bit 33MHz = 120Mbytes/s

Front Panel high speed communication
4x 2.5Gbps optical transceivers for sFPDP, Fibre Channel, Gigabit Ethernet and Infiniband applications. Useful for connecting to a remote server or a storage system.

 I/O and Front Panel Interface
4x 2.5Gbps optical transceivers for sFPDP, Fibre Channel, Gigabit Ethernet and Infiniband applications
PMC connector Pn4 64 user I/Os
Front Panel I/O daughter cards (see AD4xx range of products that combine the FM48x cards with various ADCs and DACs).

Software Support
FPGA reference design
API, documentation and sample source code
Software utility to program on-board Flash with FPGA configuration data
Device driver for Windows 2000/XP, Linux
Test /demonstration application
Custom FPGA firmware /application /driver development available upon request

Application examples
Real-time DSP functions (e.g. Floating Point FFT, FIR, Polyphase filterbanks, DDC, etc...)
Data Storage with over 1.2GBytes/s bandwidth to RAID or JBOD
Video frame grabber and compression algorithm(JPEG2000, JPEG, MPEG, etc)
Data acquisition and processing
Radar Signal Processing (Doppler filter, Pulse compression, CFAR)
Vector processing
Timing generation
Embedded processors
ASIC prototyping

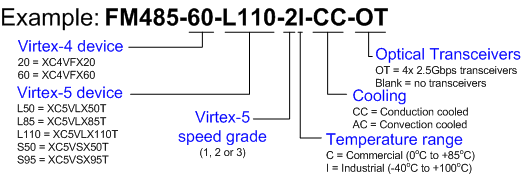

Ordering Info

part_number_FM485
