Unique Data Acquisition and Storage Components - Unequaled Performance and Flexibility

Hybrid DSP uses and recommends the following components. If you want to design and build your own system then buying through us means dealing with a reseller that works personally with these products in their own systems and subsystems and can therefore provide in-depth support. In many cases we have written the Windows and Linux software and optimized device drivers that comes with these products ourselves and which are now used and supplied by the hardware manufacturer!

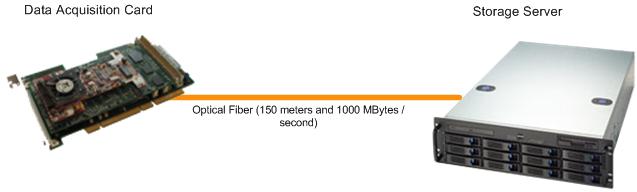

Distributed / Remote Storage ConceptClick to go to cardsClick to go to Storage page

What makes them unique?

  • Massive FPGA processing resources - two Xilinx Virtex-4 FPGAs of choice up to LX160 with speed grade 12
  • High speed PCI, PCI-X or PCI-Express interface (> 750MBPS sustained)
  • Use in PCI workstation, cPCI racks, single board computer or hostless solutions
  • True high speed distributed data acquisition - optical I/O allows up to 150 meter cable length at 1000 MBytes / second (1 Gigabyte / second)

PMC/XMC Digitizers and Waveform Generators with large FPGA processing resources and optional optical fibre I/O (sFPDP, Infiniband, Ethernet)

Note that PMC / XMC cards can be used in cPCI and regular desktop / workstation PCs (PCI, PCI-X or PCI-Express) by use of a low cost adapter - ask for details. These cards can also be used standalone and by use of high speed optical fibre links of up to 150 metres can be positioned remotely.

AD491: 2-channel 1000MSPS PMC/XMC digitizer

AD490: 2-channel 210MSPS PMC/XMC digitizer

AD484: 4-channel 125MSPS PMC/XMC digitizer

AD481: 2-channel 1000MSPS PMC/XMC DAC (waveform generator)

AD450: 2-channel 125MSPS PMC/XMC digitizer and DAC (waveform generator)

VID471/VID472: Camera link frame grabbers with processing resources (full/medium/base/dual base)



PMC/XMC FPGA Processing Modules

Note that PMC / XMC cards can be used in cPCI and regular desktop / workstation PCs (PCI, PCI-X or PCI-Express) by use of a low cost adapter.

FM486: Virtex-5 and -4, XMC or PMC-X: Data Acquisition, processing and high speed communication

FM485: Virtex-5 and -4: Data Acquisition, processing and high speed communication

FM482: Data Acquisition, processing and high speed communication

FM481: High speed communication. The building block for distributed high speed data storage.



AD490 on PCI-X adapter
VID471 Camera link frame grabber
FM482 FPGA Processing Board
